Reinforcement Speakers

Concert Series

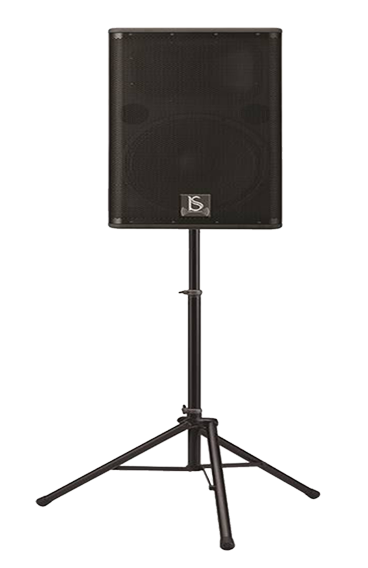

The BSR-115,BSR-112, BSR-108 from BOSE SOURDIN is a professional quality. The rugged cabinet houses a 12” woofer, low weight the speaker has a standard 35mm pole socket for mounting.

Concert Series

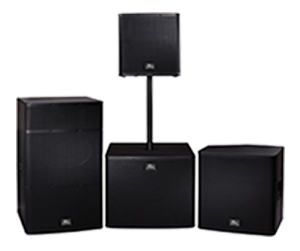

This four modals BSR-108, BSR 110, BSR-112 sub woofers available with 12”,15”,18” woofers. The sub woofer lineup has also been expanded and enhanced in addition to a new 15”, 18”model the previous twin driver model (15”x2) (18”x2).

Concert Series

This two modals BSR-108, BSR 110, BSR-112 sub woofers available with 12”,15”,18” woofers. The sub woofer lineup has also been expanded and enhanced in addition to a new 15”, 18”model the previous twin driver model (15”x2) (18”x2)

Compact Series

POWER	FREQUENCY RESPONSE	SPL	IMPEDANCE	ENCLOSURE	FINISH	NOMINAL COV.	DIMENSION	NET WEIGHT
250W AES	72HZ-20KHZ	99DB	4OHM	BIRCHPLY	TEXTURE PAINT TYPE	90X60	LX24” WX13” HX9.6”	12KG

POWER	FREQUENCY RESPONSE	MAXIMUM SOUND.	INPUT IMPEDANCE	HIGH FREQ.	LOW FREQ.	FINISH	DIMENSION	NET WEIGHT
1300W AES	20KZ- 20KHZ	135 DB	4 OHM HF 8OHM	2” TITANIUM	2X15” FERRITE CONE	BLACK FINISH	18.4X45.6X20.5”	55.8KG

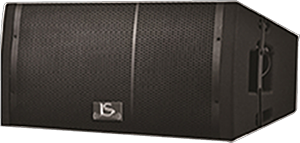

LINE ARRAY SPEAKER 8"

FREQUENCY RANGE	FREQUENCY RESPONSE	SYSTEM MAXIMUM	SPL	HIGH FREQ.	TRANSDUSER	ENCLOSURE	FINISH	NOMINAL IMPEDANCE	DIMENSION	NET WEIGHT	POWER HANDLINGSS
45 HZ-20 KHZ (-10DB)	55 HZ -20 KHZ	PASSIVE - 126 DB	130DB	1"X1	8”x2	11PLY BIRCH PLYWOOD	BLACK FINISH	PASSIVE 4OHM	14X40X15”	49.8 KG	400W RMS

LINE ARRAY SPEAKER 10"

FREQUENCY RANGE	FREQUENCY RESPONSE	SYSTEM MAXIMUM	SPL	HIGH FREQ.	LOW FREQ.	ENCLOSURE	FINISH	NOMINAL IMPEDANCE	DIMENSION	NET WEIGHT	POWER DELIVERY
45 HZ-20 KHZ (-10DB)	58 HZ -20 KHZ	PASSIVE - 120 DB	125DB	1"X1	10”x2	11PLY BIRCH PLYWOOD	BLACK FINISH	PASSIVE 4OHM	12”X30”X15”	40KG	500 W RMS

LINE ARRAY SPEAKER 12"

FREQUENCY RANGE	FREQUENCY RESPONSE	SYSTEM MAXIMUM	SPL	HIGH FREQ.	LOW FREQ.	ENCLOSURE	FINISH	NOMINAL IMPEDANCE	DIMENSION	NET WEIGHT
57 HZ-20 KHZ (-10DB)	75 HZ -20 KHZ	PASSIVE - 126 DB	130DB	112 DB	2X12”	11PLY BIRCH PLYWOOD	BLACK FINISH	PASSIVE 4OHM	14X40X15”	49.8 KG
